SUPERMICRO® Storage Servers
SUPERMICRO® Storage Servers
SUPERMICRO® storage servers represent a robust solution for organizations grappling with the challenges of managing and processing vast amounts of data. These servers are meticulously engineered to deliver exceptional storage capabilities, making them well-suited for a wide array of applications, including big data analytics, cloud storage, content delivery, and enterprise storage environments.
One of the defining features of Supermicro storage servers is their impressive scalability, allowing organizations to expand their storage capacity as their data requirements grow. The servers are designed to accommodate a multitude of storage devices, including hard disk drives (HDDs), solid-state drives (SSDs), and NVMe drives, enabling organizations to tailor their storage configurations to meet specific performance and capacity needs.

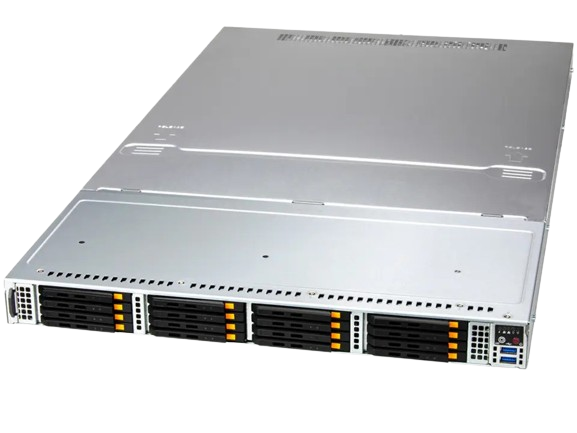

Storage A+ Server ASG-1115S-NE316R
1U front-loading all-flash storage server with 16 E3.S NVMe drives and PCIe 5.0
Key Features
- Single Socket SP5 AMD EPYC™ 9004 Series processors. Up to 300W TDP.
- Supports 24 DIMMs with 2DPC, up to 6TB memory capacity with 24 DIMMs of 256GB 3DS RDIMM/RDIMM DDR5 ECC memory
- Two PCIe 5.0 x16 slots & two AIOM connectors (OCP 3.0 SFF compliant)
- 16x hot-swap E3.S (7.5mm) NVMe drive bays
- Redundant Titanium 1600W Power Supplies

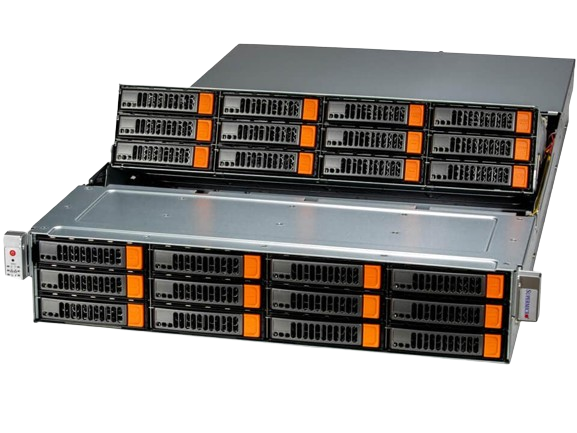

Storage A+ Server ASG-2015S-E1CR24H
2U front/top-loading storage server with 24 hot-swap 3.5" SAS/SATA bays (SAS hardware RAID) and PCIe 5.0
Key Features:
- Single Socket SP5 4th Generation AMD EPYC™ 9004 Scalable Processors. Up to 290W TDP.
- 12 ECC DDR5-4800: LRDIMM/RDIMM
- Two Dedicated PCIe 5.0 x16 AIOM slots (OCP 3.0 SFF compliant) Up to 6x PCIe 5.0 Slots (Slot #2 populated by 3908 controller)
- Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN per node

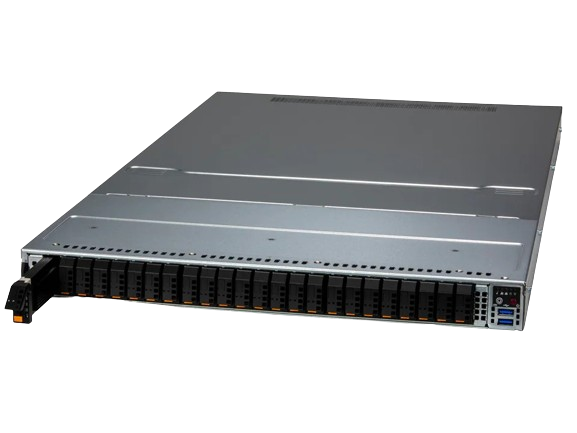

Storage SuperServer SSG-121E-NES24R
1U front-loading all-flash storage server with 24 E1.S NVMe drives and PCIe 5.0
Key Features:
- Dual Socket E (LGA-4677) 5th/4th Generation Intel® Xeon® Scalable processors. Up to 270W TDP.
- Supports 32 DIMMs with 2DPC, up to 8TB memory capacity with 32 DIMMs of 256GB 3DS RDIMM DDR5-5600 ECC memory
- Two PCIe 5.0 x16 slots & two AIOM connectors (OCP 3.0 SFF compliant)
- 24x hot-swap E1.S (9.5mm or 15mm) NVMe drive bays
- Redundant Titanium 2000W Power Supplies

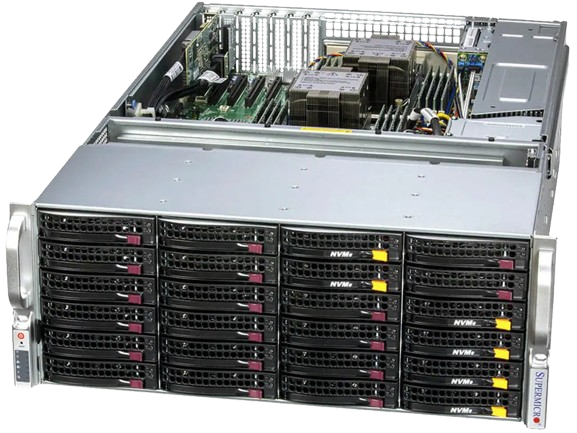

Storage SuperServer SSG-641E-E1CR36H
4U front/rear-loading storage server with 36 hot-swap 3.5" SAS/SATA bays (6 optional NVMe hybrid, SAS hardware RAID) and PCIe 5.0
Key Features:
- Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
- Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s(1DPC) in 16 DIMM slots
- 2x 10 GbE onboard via Broadcom BCM57416
- 1x GbE Dedicated LAN for server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
- 36x 3.5"/2.5" Hot-swap SAS3/SATA3 drives, 2x Rear 2.5" SATA Slots, 2x NVMe M.2 (form factor: 2280 and 22110)
